EDIFIER E10BT Bluetooth Bass Speaker
Subwoofer Dual Bass Wireless Speaker
Support Total 6 Active Speakers Drivers For max Effect
3 inch subwoofer and two 3 inch radiators on each speaker
Total of 6 active speakers drivers for maximum effect
Power Output: RMS 8W * 2 + 10W * 2 (DRC on)
THD + N: 10%
Signal to Noise Ratio: ≥85dBA
Frequency Response: 48Hz-20kHz
Input Sensitivity: R/L: 700±50mV | SW: 250±50mV
Power supply: Switching power supply 20W / 12V
Mid-range/Tweeter unit: 1½ inch (40mm), Magnetically shielded, 8Ω
BASS: 3 inch (82mm), Magnetically shielded, 6Ω
Dimensions : 105mm * 310mm * 180mm (W * H * D)
Weight: 2.4Kg (net) | 3.0Kg (gross)
Overview The Exclaim Connect Speaker
Producing crisp highs and mids while delivering rich lows, Exclaim Connect is ideal for PC/laptop audio. With a unique look that seamlessly blends smooth curves and straight lines, this bookshelf speaker is also the perfect accessory for your desktop.
Each satellite houses 3 active speaker drivers and 2 passive radiators, maximizing audio performance. The upper section of each satellite contains two 1½” midrange/tweeters and a 1½” by 3″ passive radiators. While the base section contains a 3″ woofer and a 3″ passive bass radiator for rich, powerful bass.
Exclaim Connect incorporates an arsenal of technology to provide the best PC/laptop audio experience. The bi-amped bookshelf speaker system packs an unexpected punch. With each speaker unit being driven by its own internal amplifier.
The Digital Signal Processing (DSP) technology delivers active crossover frequencies and superb tonal balance, even at high volumes. While the Dynamic Range Compensation (DRC) technology keeps any possible distortion at an absolute minimum.
Volume and power/standby control buttons are conveniently located on the side of the right speaker.
Pair your phone, tablet or laptop with Exclaim Connect using the integrated Bluetooth connectivity, and enjoy your music anywhere in the room.
The conventional 3.5mm AUX-in allows connection to non-bluetooth devices, a 3.5mm AUX cable is included in the box.

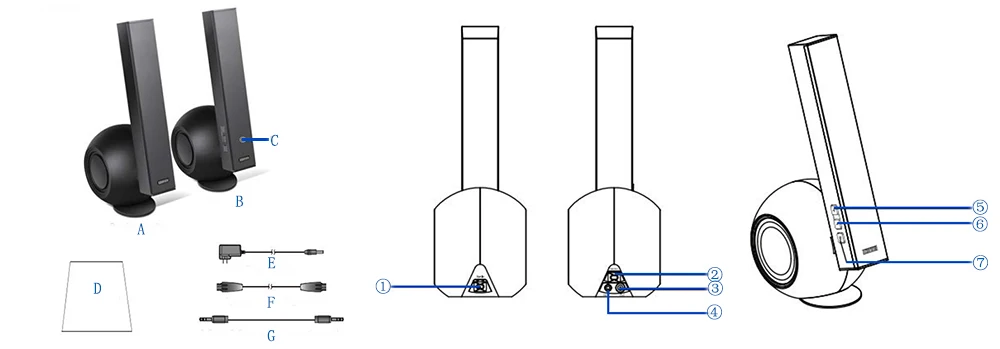

A: Passive speaker ; B: Active speaker ; C: LED indicator
D: User manual ; E: Power adapter ; F: Speaker connecting cable
G: 3.5mm – 3.5mm audio connecting cable
1: Connect to the active speaker
2: Connect to the passive speaker
3: Connect to the power adapter
4: AUX input
5: Volume increase
6: Volume decrease
